Parking Logix OpenSpace solutions

OPENSPACE™ VMS

The OpenSpace Variable Messaging Sign (VMS) shows drivers how many spaces are available on each of your levels or in each of your lots. It can be customized to reflect your unique parking resources and can include branding and color customization. The signs show real-time traffic data received from the OpenSpace sensors. Occupancy data shown on the VMS signs can also be accessed via the cloud for lot managers.

Features:

• Wireless connectivity
• Energy efficient
• Durable and long lasting
• Theft protection
• Remote control
• Intuitive remote management
• Brilliant LED visibility

GET STARTED

Specs

Dimensions

OpenSpace VMS:

Sign: 40”(h) x 32”(w) x 4”(d)

Text (P): 14”(h)

Text (spaces): 4”(h)

Digits: 6”(h)

OpenSpace Multi-lot:

Sign: 48”(h) x 40” (w) x 4” (d)

Text (Parking Spaces): 4” (h)

Digits: 5”(h)

Weight

OpenSpace VMS:	Unit only (without cover): 18-22lbs depending on power and battery options.
OpenSpace Multi-lot:	Unit only: 40lbs depending on power and battery options

Operating Temperature & Power Input

OpenSpace VMS:

Fahrenheit: -40°F to 185°F

Celsius: -40°C to 85°C

AC: 100~240V

DC: 12V

OpenSpace Multi-lot:

Fahrenheit: -40°F to 185°F

Celsius: -40°C to 85°C

AC: 100~240V

DC: 12V

Enclosure

OpenSpace VMS:

12 gauge aluminum, flat black powder coated front for reduced glare and maximum contrast; light gray powder coated body to minimize heat absorption

Weatherproof, NEMA 4X-12, IP65 level compliant

Non-sealed and ventilated

OpenSpace Multi-lot:

Aluminum cabinets:
Non glare Lexan face
CSA certified

Displays 5” green digits or red FULL

OPENSPACE MAGNETOMETER

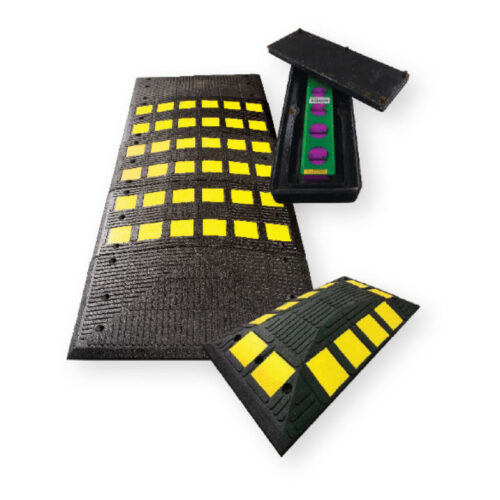

Magnetometers gather data at ingress and egress points, offering an affordable plug-n-play parking counting system with 99% accuracy that can be fully installed and operational in just one morning. By using less sensors than single-space systems, your costs are far lower without compromising on accuracy.

Features:

OpenSpace magnetometer sensors are mounted into speed humps or directly into the ground at entrance and exit points. No digging is required at each spot, minimizing interruption and ensuring cost-effectiveness. The wireless sensors keep up-to-the-minute count of parking availability and share data with drivers and lot managers.
Data can be shared with drivers on LED, customizable VMS signs or right on their phones via the PL Parker Mobile App. You can also use API integration to push data to your website and other parking apps. Logix on Cloud gives parking managers detailed parking data, analytics, and reports.
The OpenSpace magnetometer system offers AC power or optional solar power.

Specs

Dimensions

Embedded Bidirectional sensor

Height: 1.625″ (4.1 cm)

Width: 28.5″ (72.4 cm)

Depth: 2.5″ (6.4 cm)

Single rubber pod

Height: 3.25″ (8.3 cm)

Width: 41.875″ (106.4 cm)

Depth: 18″ (45.7 cm)

Safety Rider speed hump

Height: 2.1″ (5.3 cm)

Width: 97.5″ (247.7 cm)

Depth: 35.5″ (90.2 cm)

Weight

Bidirectional sensor	(sensor only): 3.6 lbs (1.6 kg)
Single rubber pod	46 lbs (20.9 kg)
Safety Rider speed hump	(5 panels): 174 lbs (78.9 kg)

Technical specifications

Operating Temperatures	F (C): -40° (-40°) to 185° (85°)
Coating	On all circuit boards

Material

Embedded sensor	Encapsulated in polyurethane
Single rubber pod	Compression molded 100% recycled rubber and polyurethane composite
Safety Rider speed hump	Compression molded 100% recycled rubber and polyurethane composite

OPENSPACE LASER

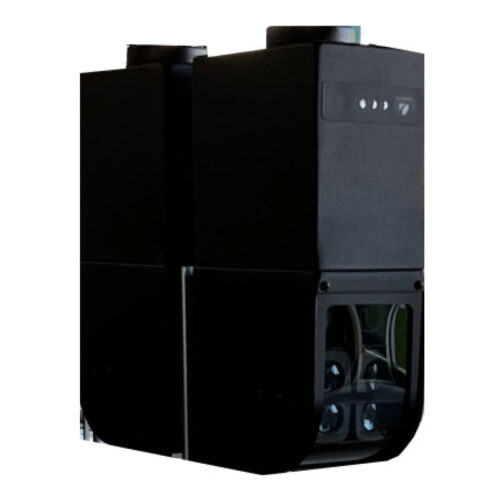

Laser and lidar technology detect vehicle movement and direction to get detailed availability data and share it with drivers and managers. The revolutionary plug-n-play parking occupancy system offers accuracy of over 99%.

Features:

The OpenSpace Laser system install in just hours with no construction required and no disruption to parking lot usage. Simply mount an OpenSpace Laser system to your ceiling, pole, or wall. There is no need to dig into lot surfaces or install sensors in each spot.
Data can be shared with drivers via LED variable message signs or on the PL Parker Mobile App. Data can also be pushed to your website or any parking app. Detailed reports and statistics can be accessed by lot managers from Logix on Cloud.

Specs

Dimensions

Dimensions	4″ x 5″ x 9.5″
Weight	3 lbs

Specifications

Operating Temperatures

-20 to 140F

Enclosure

Rugged, weather-proof enclosure

Power

• 6W

• 100-240 VAC / 12 VDC

• Optional solar power via 85W panel

• Optional battery backup

This system can be used in conjunction with the Magnetometer or Laser Parking Occupancy System as a hybrid model to offer the most optimized parking guidance for lots.

OPENSPACE AI CAMERA

AI Camera technology can offer infinite possibilities with detailed footage of every car in your lot. While having a camera for every parking spot can get pricy, at Parking Logix, we innovated and created our OpenSpace AI Camera Guidance System, which utilizes advanced camera technology to provide detailed monitoring specifically for high value parking spots.

Features:

The OpenSpace AI Camera system provides innovative bi-directional ingress and egress monitoring. With a remote camera configuration, using a roadside server with an integrated router, it uses advanced vision technology to provide tailored monitoring of high-value parking spaces such as ADA or EV parking spaces.
As EV charging spots increase, the need to enforce appropriate usage grows. OpenSpace AI camera technology offers an affordable solution that gives real-time viewing access to parking spots without the need to deploy an extensive camera system, which can be prohibitively expensive.
Data can also be pushed to your website or any parking app. Detailed reports and statistics can be accessed by lot managers from Logix on Cloud.
The AI camera technology can work with AC power or optional solar power.

OPENSPACE™ API INTEGRATION

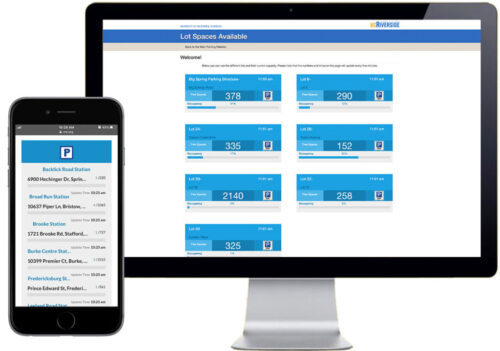

Using our intuitive API integration, share real-time data with drivers right on your website or on the parking app of your choice. The OpenSpace API allows for simple integration that lets you display real time data on your website so that drivers can see current occupancy before they even leave to your lot.

Or you can choose to push data to your own app or a choice of parking apps so drivers can access availability data right from their phones. Help drivers make better informed parking decisions with data right at their fingertips, whenever they need it.

Features:

• Wireless connectivity
• Real-time data
• Remote access
• Improved accessibility to data
• Appeals to wide spectrum of drivers
• Choice of sharing options
