| Resolution (H × V) | Full HD, 1920 × 1080 pixels |
| Camera Lens | CS mount; fixed focal length; suitable for day/night time operation |
| Number of traffic lanes | 1 |
| OCR | Server-based; Front plate |
GUARDIAN AWARENESS
The Guardian Awareness Camera is an innovative way to increase awareness and improve lot safety
The cameras can be used both inside and outside your facility. They are mounted with an Evolution speed display sign that alerts drivers to their speeds.
They give you detailed data on where speeding is occurring and which drivers are speeding and are a powerful tool to enforce speed limits and reinforce positive behavior.

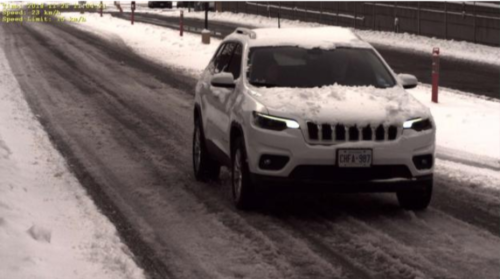

Sample Image Capture
Options:
• For use in both day and night
• Set local speed limit, violation
speed limit, and how many images to capture per violator
• Operational in all weather conditions
• Powered by AC power supply
• Optional solar power available
• Customized warnings
• Zero software footprint
• Data is accessible from anywhere
• 2 year warranty on camera, 1 year warranty on batteries
• Set local speed limit, violation
speed limit, and how many images to capture per violator
• Operational in all weather conditions
• Powered by AC power supply
• Optional solar power available
• Customized warnings
• Zero software footprint
• Data is accessible from anywhere
• 2 year warranty on camera, 1 year warranty on batteries
Specs
Camera/Imaging
Processor/Storage/OS
| CPU | Raspberry Pi compute module ARM Cortex-A72 1.5 GHZ Quad core processor |
| Memory | 4 GB of RAM |
| Storage | 16 GB of storage |
| Buffer | approximately 1200 incidents (with typical settings) |
| Operating System | Custom-built Linux |
Illuminator
| Internal/External | Internal |
| Wavelength | 850nm |
Electrical Specifications
| Power supply voltage | 12 V DC |
| Instant Current | 0.41 Amps |
| Power consumption | 4.96 Watts approximately |
Mechanical Specifications
| Operating temperature | -20° C to 65° C |
| IP rating | IP65 |
| Camera Housing | Aluminum, light gray or black |
| Weight | 3.65 lbs |
| Dimension of camera | 8.25” (H) × 6.25” (W) × 2.75” (D) |
Communication
| WiFi | Wi-Fi 802.11 b/g/n |
| GSM | 3G/4G (2G compatible) |
| SIM card size | Standard |
| Ethernet | Standard wired Ethernet 100 BASE-TX |
